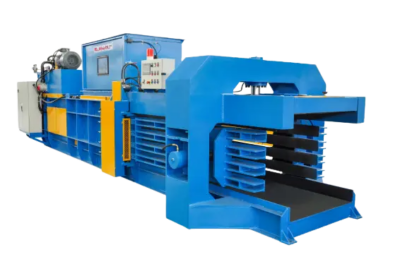

Automatic horizontal presses
They allow you to press secondary raw materials in automatic mode, i.e. the press turns on when the secondary raw materials enter the loading window, then, as the material arrives, the press forms a dense pile and ties it with wire. The operator provides the supply of secondary raw materials and the reception of finished bales
Compact Automatic Horizontal Presses
Automatic Medium-Sized Horizontal Presses High-Performance
Automatic Horizontal Presses
Compact Automatic Horizontal Presses
Model
ST-20/5050
SW-30/5050
ST-40/7280
SW-60/7585
SW-60/11075
Pressing condition, t
20
30
40
60
60
Bale Size (L*W*C), mm
500*500*(300-1000)
500*500*(300-1000)
720*800*(300-1200)
750*850*(300-1600)
1100*750*(300-1600)
Loading window (L*H), mm
625*480
950*450
1200*690
1500*700
1600*1050
Strapping lines, mm
3
4
4
4
4
Bale density(kg/m)
350-450
250-300
350-450
400-500
400-500
Productivity, t/h
1-1.5
1-1.5
1.5-3
3-4
3-6
Engine power, Kw
7.5
11
15
22
30
Dimensions of the press (L*G*C), mm
3600*2500*1650
5000*2750*1800
5950*3200*2500
6900*3300*2100
7100*4200*2100
Press weight, t
3
4
7
8
9.5
Automatic Medium-Sized Horizontal Presses
Model
ST-60/11075
SW-80/11080
SW-80/11085
ST-100/11080
SW-100/2-110
Pressing condition, t
60
80
80
100
100
Bale Size (L*W*C), mm
1100 * 750 * (300 - 1600)
1100 * 800 * (300 - 1800)
1100 * 850 * (300 - 1800)
1100 * 800 * (300 - 2000)
1100 * 1100 * (300 - 2000)
Loading window (L*H), mm
1600 * 1050
1600 * 1050
1800 * 1050
1800 * 1050
2000 * 1050
Strapping lines, mm
4
4
4
4
4
Bale density(kg/m)
400 - 500
450 - 550
450 - 550
400 - 550
500 - 600
Productivity, t/h
3-7
4-7
5-8
5-10
7-11
Engine power,Kw
22
37
37
45
45
Dimensions of the press (L*G*C), mm
7950 * 3950 * 3500
7900 * 4200 * 2100
8200 * 4200 * 2200
9100 * 4000 * 4200
8800 * 4300 * 2400
Press weight, t
13
11
12
16
15
High-performance horizontal automatic presses
Model
ST-100 /2-110
ST-125 /2-110
SW-150 / 2-110
ST-150 / 110125
SW-200 / 2-110
SW-250 / 110125
Pressing condition, t
100
125
150
150
200
250
Bale Size (L*W*C), mm
1100 * 1100 * (300 - 2000)
1100 * 1100 * (300 - 2100)
1100 * 1100 * (300 - 2100)
1100 * 1250 * (300 - 2100)
1100 * 1100 * (300 - 2100)
1100 * 1250 * (300 - 2100)
Loading window (L*H), mm
1800 * 1050
1800 * 1050
2200 * 1050
2200 * 1050
2400 * 1050
2800 * 1050
Strapping lines, mm
5
5
5
4
5
5
Bale density(kg/m)
450 - 550
400 - 500
600 - 750
550 - 600
700 - 850
850 - 100
Productivity, t/h
6-12
7-14
10-16
20-30
14-20
25
Engine power, Kw
45
55
85
3*45
101
110
Dimensions of the press (L*G*C), mm
9300 * 4000 * 4200
9600 * 4100 * 4200
9800 * 4300 * 2400
12000 * 4200 * 6000
10500 * 4370 * 2500
12000 * 4468 * 2700
Press weight, t
18
20
20
35
30
35
