Vertical presses

Home -  Smart решения -  Cardboard and waste paper -  Vertical presses

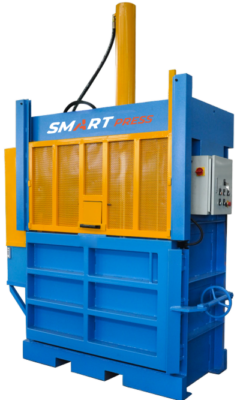

The vertical hydraulic press is designed for pressing recycled materials into dense bales, which significantly reduces the volume of materials and reduces the cost of their storage and transportation.

The compact design makes the equipment convenient for installation in rooms with limited space.

Get a consultation
MainImg

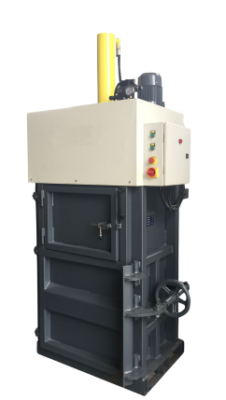

Small Format Vertical Presses

Arrow

Model

SW-2/5947

ST-5/6040

SW-8/7050

ST-10/6040

ST-20/8060

Pressing condition, t
2
5
8
10
20
Loading window (L*H), mm
590*355
600*400
670*400
500*300
700*400
Bale Size (L*W*C), mm
590*470 * (350-600)
600*400 * (200-600)
700*500*700
600*400 * (200-600)
800*600 * (400-800)
Bale weight, kg
30-50
20-40
50-80
15-50
60-120
Engine power, kW
0.75
1.5
2.2
2.2
3
Press weight, kg
350
450
590
800
1000
Dimensions of the press(L*G*C), mm
770*770*1930
900*570*2240
880*820*2150
1000*800*2250
1000*800*2250

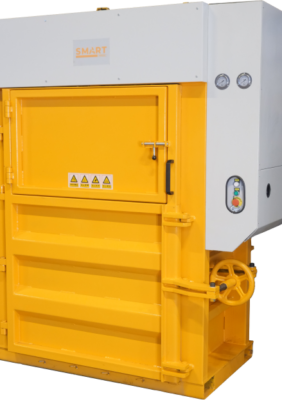

Series of Vertical Presses with Crossed Cylinders

Arrow

Model

SW-5/8060

SW-10/10070

SW-30/12080

ST-50/12080

Pressing condition, t
5
10
30
50
Bale Sizes (L*W*C), mm
800*600*400
1000*700*500
1200*800 * (500-1000)
1200*800 * (600-1100)
Loading window (L*H), mm
650*470
900*470
1050*550
1050*550
Productivity, t/h
4-7
4-7
5-7
6-7
Bale weight, kg
50-80
80-120
200-400
300-500
Engine power, kW
2.2
3
4
5.5
Dimensions of the press (L*G*C), mm
1100*1000*2150
1300*950*2280
1800*1400*2300
1900*1500*2550
Press weight, kg
550
750
2200
2800

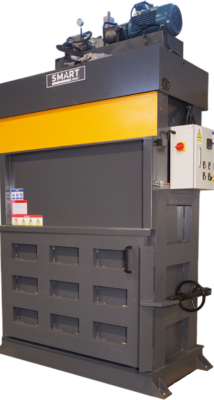

Vertical presses of medium and large format

Arrow

Model

SW-30/11070

SW-40/11075

SW-50/15075

Pressing condition, t
30
40
50
Bale Sizes (L*W*C), mm
1100*700*(650-900)
1100*750*(650-900)
1500*750*(700-1000)
Loading window (L*H), mm
1100*500
1100*500
1500*600
Productivity, t/h
3-6
3-5
3-5
Bale weight, kg
150-250
200-350
350-500
Engine power, kW
5.5
5.5
7.5
Dimensions of the press (L*G*C), mm
1500*950*3150
1500*1000*3150
1850*1200*3300
Press weight, kg
1200
1700
2300

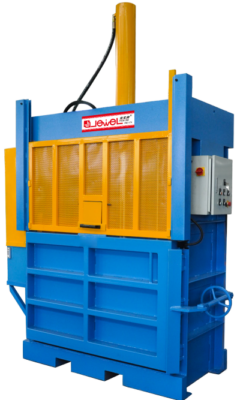

Vertical presses for aluminum cans, PET bottles

Arrow

Model

ST-30/8060

ST-40/10060

ST-50/11070

ST-80/12080

Pressing condition, t
30
40
50
80
Bale Sizes (L*W*C), mm
800*600 * (200-100)
1000*600 * (300-100)
1100*700 * (300-1000)
1200*800*(300-1200)
Loading window (L*H), mm
800*500
1000*500
1100*500
1200*500
Bale weight, kg
30-120
60-180
90-270
200-380
Engine power, kW
5.5
7.5
11
15
Dimensions of the press (L*G*C), mm
1280*850*3300
1480*1000*3400
1600*1100*3500
1700*1200*3900
Press weight, kg
1400
1700
1900
2500

Vertical presses of medium and large format with an upward sliding door

Arrow

Model

SW-30/11070/D

ST-40/12080/D

SW-50/15076/D

ST-60/180100/D

Pressing condition, t
30
40
50
80
Bale Sizes (L*W*C), mm
800*600 * (200-100)
1000*600 * (300-100)
1100*700 * (300-1000)
1100*700 * (300-1000)
Loading window (L*H), mm
800*500
1000*500
1100*500
1200*500
Bale weight, kg
30-120
60-180
90-270
200-380
Engine power, kW
5.5
7.5
11
15
Dimensions of the press (L*G*C), mm
1280*850*3300
1480*1000*3400
1600*1100*3500
1700*1200*3900
Press weight, kg
1400
1700
1900
2500

Learn more about Vertical presses

A vertical press is designed for compacting recyclable materials and forming them into dense bales. Thanks to its compact design, the press can be installed even in small spaces.

This type of press is hydraulic. It is equipped with a press plate located inside the chamber, which moves vertically to compress the material loaded into the chamber. As a result, loose recyclable material is transformed into a dense, compact bale.

The main purpose of using press equipment is to reduce the volume of materials, thereby lowering transportation costs to recycling facilities.
