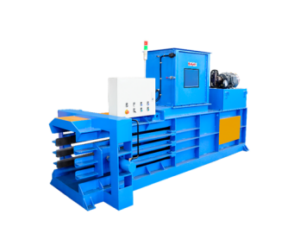

Semi-automatic horizontal presses

This group of presses is also suitable for pressing large volumes of secondary raw materials, but differs only in that the fact of forming a dense pile requires the operator to participate in the process of strapping it. This group of presses is also suitable for pressing large volumes of secondary raw materials, but differs only in that the fact of forming a dense pile requires the operator to participate in the process of strapping it. They allow you to press secondary raw materials in automatic mode, i.e. the press is switched on at the moment of receipt of secondary raw materials into the loading window, then, as the material arrives, the press forms a dense pile and ties it with wire. The operator provides the supply of secondary raw materials and the reception of finished bales

Get a consultation
MainImg
EqutImg

Semi-automatic horizontal presses with an open channel

Arrow
Pressing condition, t
40
60
80
100
120
150
Bale Size (L*W*C), mm
720 * 800 * (500 - 1400)
750 * 850 * (500 - 1600)
1100 * 800 * (500 - 1800)
1100 * 1100 * (500 - 1800)
1100 * 1200 * (500 - 2000)
1100 * 1200 * (500 - 2100)
Loading window (L*H), mm
1000*690
1200*750
1500*800
1800*1100
2000*1100
2000*1100
Strapping lines, mm
4
4
4
5
5
5
Вес кипы, кг
250-350
300-500
400-600
700-1000
800-1050
900-1300
Engine power, Kw
11
15
22
30
37
45
Productivity, t/h
0.5-1
2-3
4-5
5.7
6-8
6-8
The way out of the pile
Due to the subsequent
Due to the subsequent
Due to the subsequent
Due to the subsequent
Due to the subsequent
Due to the subsequent
Dimensions of the press(L*G*C), mm
4800*1500*2000
5850*1880*2100
6720*2100*2300
7750*2400*2400
8800*2400*2550
9300*2500*2600
EqutImg

Semi-automatic closed-channel presses

Arrow
Pressing condition, t
30
40
60
80
100
120
Bale Size (L*W*C), mm
700*700*(300-900)
720*720*(300-1000)
1000*800*(300-1000)
1100*800*(300-1100)
1100*850*(300-1300)
1100*1200*(300-1200)
Loading window (L*H), mm
700*690
1000*720
1200*980
1950*1100
1400*1050
1600*1100
Strapping lines, mm
3
4
4
4
4
5
Bale weight, kg
200-250
250-350
350-500
500-600
600-700
800-1000
Engine power, Kw
11
15
15
22
30
37
Dimensions of the press (L*G*C), mm
4200*1100*900
6500*1200*1900
5700*1800*2400
2700*1550*2300
7450*1600*2300
8500*1600*2400
The way out of the pile
Upon completion
Upon completion
Upon completion
Upon completion
Upon completion
Upon completion
EqutImg

Semi-automatic presses with a closed channel and an upward sliding flap

Arrow
Pressing condition, t
40
60
80
100
120
150
Bale Size (L*W*C), mm
700*720*(300-1000)
750*850*(300-1100)
1100*800*(300-1100)
1100*1100*(300-1100)
1100*1200*(300-1200)
1100*1200*(300-1300)
Loading window (L*H), mm
1000*720
1200*750
1350*1050
1500*1100
1600*1100
1800*1100
Strapping lines, mm
4
4
4
5
5
5
Bale weight, kg
250-350
350-500
500-600
600-800
800-1000
1000-1200
Engine power, Kw
15
18.5
22
30
37
45
Dimensions of the press (L*G*C), mm
5500*1150*1900
6000*1200*1950
6900*1870*2000
7600*1650*2500
7600*1750*2500
8800*1850*2650
The way out of the pile
Upon completion
Upon completion
Upon completion
Upon completion
Upon completion
Upon completion

Больше о Полуавтоматических горизонтальных прессах

Оборудование работает в автоматическом режиме формирования кипы: при поступлении материала в загрузочное окно пресс запускается и по мере накопления сырья формирует плотный тюк.

Особенность данной группы прессов заключается в необходимости участия оператора на этапе обвязки готовой кипы. После достижения заданной плотности оператор выполняет её фиксацию проволокой, а также обеспечивает непрерывную подачу вторичного сырья и выемку готовых кип. Такое решение сочетает высокую производительность, надёжность и оптимальные затраты на эксплуатацию.
